Dave's Sonex Builders Log

I worked on a small variety of items today. I tried out some plastic razor blades to remove the plastic coating from the aluminum sheets used for the fuselage. They had become very stick and brittle over time and I needed to find a way to remove them. Due to the brittleness of the plastic it would immediately break off in pieces when I tried to removed it. Using the plastic razor blades and a heat gun on low I was able to carefully scrape off the plastic without damaging the aluminum. I’ll take some pictures next time.

I also spent some time working on the canopy latch. I am using the stock latch design as per the plans and the small tab the protrudes the canopy did not seem secure riveted with two cherry or pop style rivets. I decided to drill out the rivets and use solid rivets. This seems to make a much stronger connection. I think the setting of the rivets allow them to expand and completely fill the rivet holes resulting in a tighter connection.

I order the seatbelts today and looked at the fasteners securing the canopy to the frame. Next step is to shorten up some of the fasteners using ones I had previously ordered.

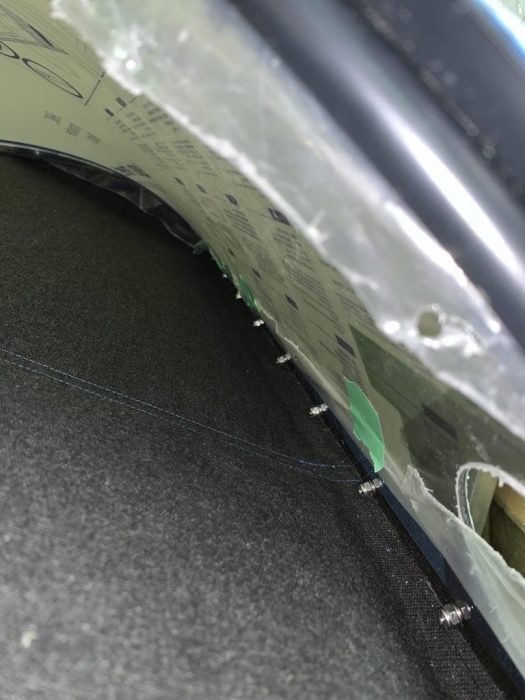

I completed the windshield and canopy installation today. The windshield was installed with stainless steel fasteners. I had a problem with one of the nuts which ended up cross threaded and then I stripped the screw. I ended up drilling out the screw while holding the nut in order to remove it.

While installing the windshield I found it didn’t seem to sit down tight on the top of the bow. I’m not sure why but I used a washer to space if off. With the windshield installed I was able to reattach the canopy by inserting the hinge pin.

Today I continued to finish the holes I previously cut in the windscreen. The first step was to finish opening up the second hole to very close the the correct size. I also filed down some of the molding flashing on one of the snap vents to get the best possible fit. I expect to open the holes a bit more after fitting the windshield as I expect the curve of the windshield to distort the holes.

Before installing the windshield I realized that I needed to cover the curved areas of the firewall just above the glare shield in order to prevent glare. I used a piece of file folder to make the pattern.

I started to prepare to reinstall the windshield today. I reinstalled the hoop that supports the windshield and then temporarily installed the windshield. Next I need to determine where to place the fresh air vents so that I can remove the windshield and cut the holes for them.

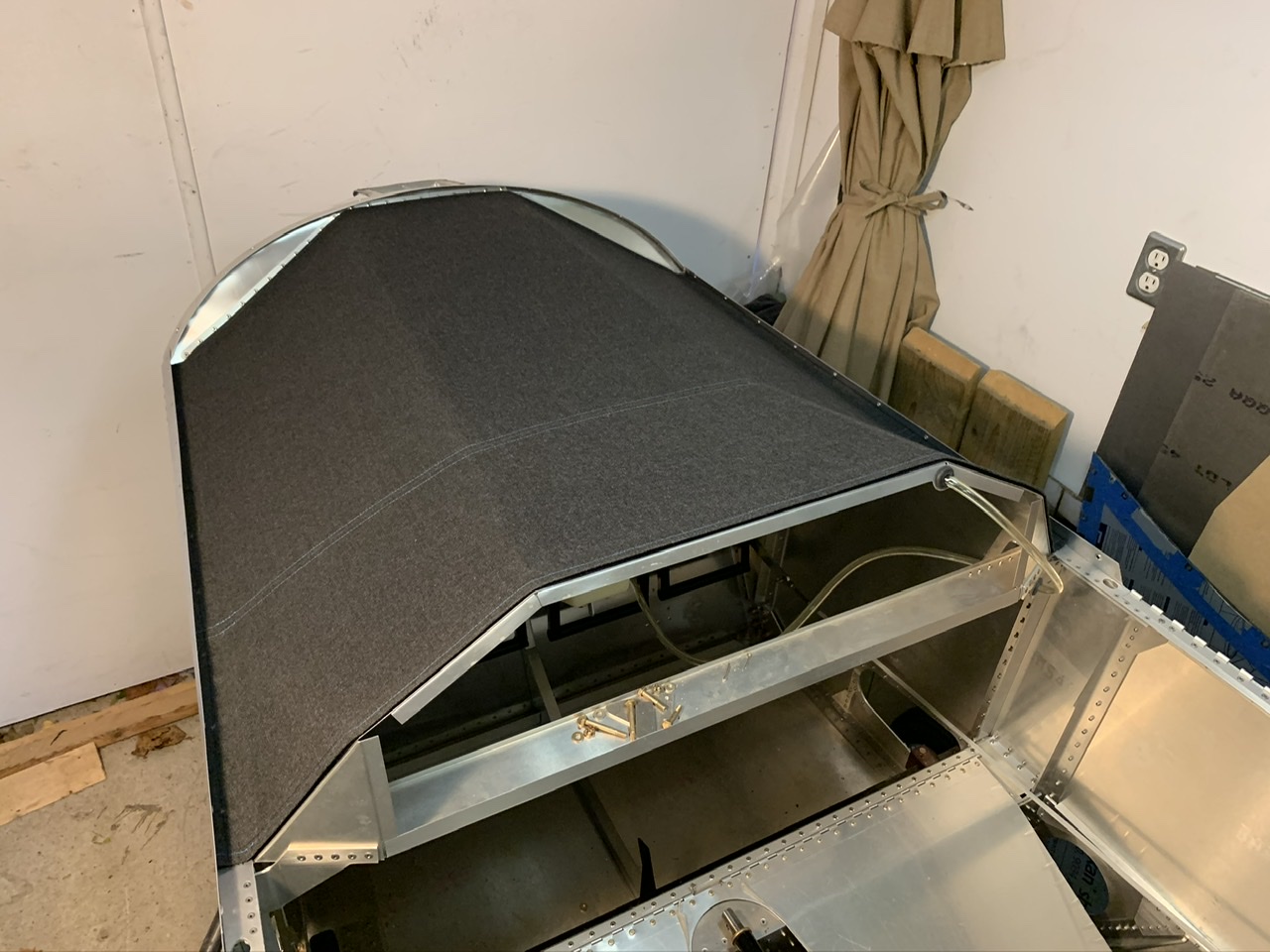

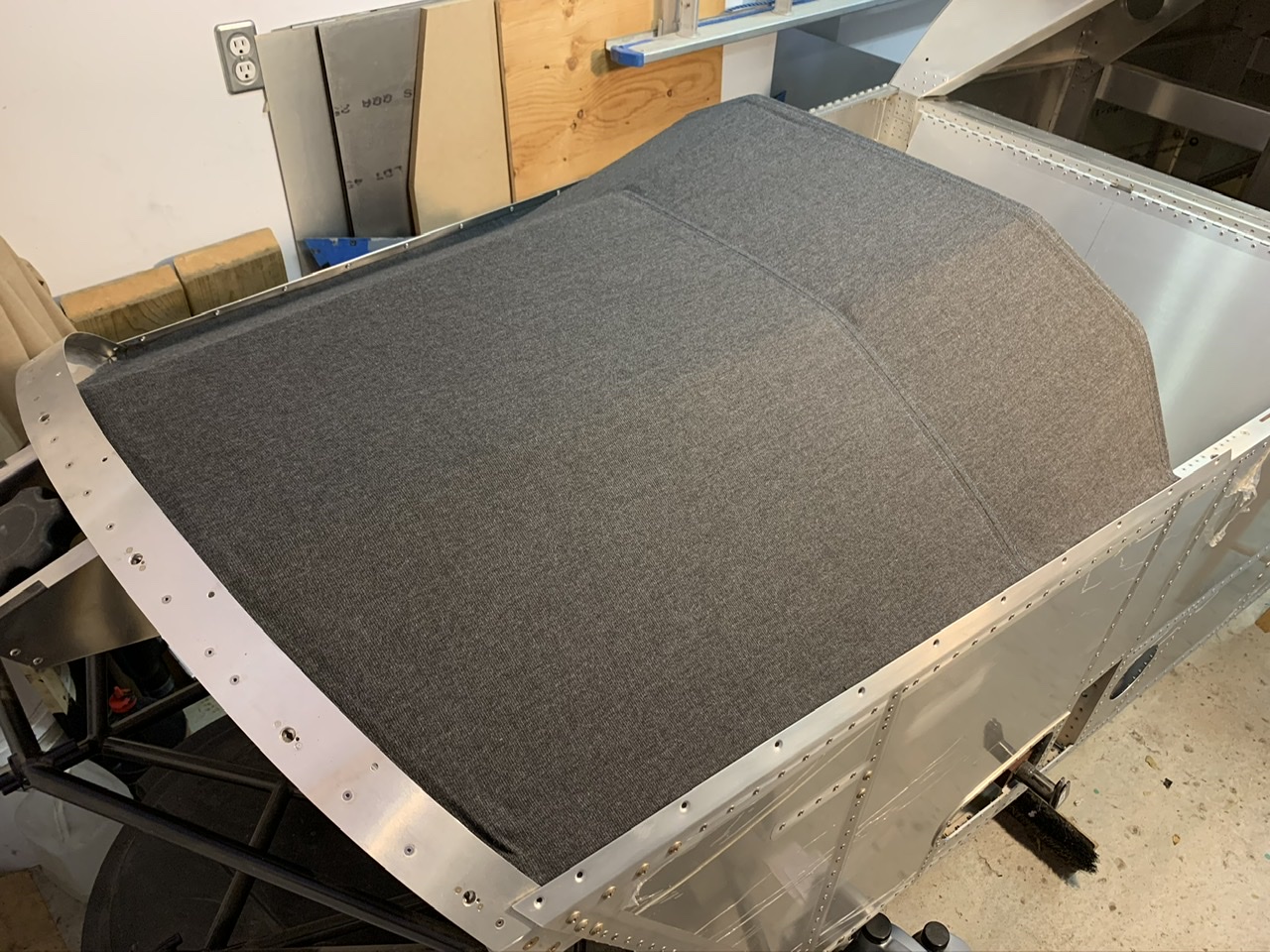

I finished installing the instrument panel glare shield covering today. I applied the remaining velcro to both the aluminum glare shield and the back of the covering. I sewed the ends of the velcro to the covering by hand, aligning the stitches with the existing machine stitches in order to hide them.

I installed some felt on the glare shield today as padding under the cloth covering. The top of the glare shield has velcro loop strips that are one inch wide around the edges with felt in the middle. The felt is applied using two sided tape.
